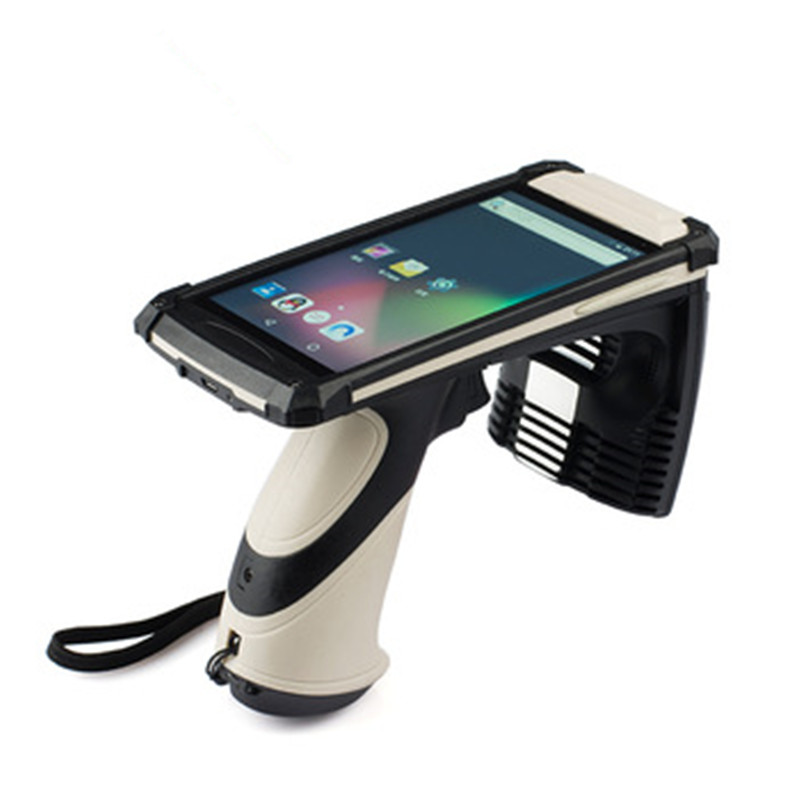

FDY-8190 UHF RFID Handheld Reader
FDY-8190 RFID UHF Handheld Reader is a IP64 industrial-grade handheld reader, with GPS,WIFI, Bluetooth, 3G,4G standard function, can add 1D, 2D barcode, fingerprint, UHF function. The accessories include battery and Charger&USB Data Cable.
This reader can be used for different applications, such as warehouse management, clothes management, library management, and animal management, etc.
FDY-8190 Support Android operating system, optional ultra-high frequency RFID function. According to ergonomic design, external antenna, the appearance of small and exquisite, high degree of protection, simple operation, easy to carry, high flexibility, suitable for working in a variety of environmental conditions. Mainly used in logistics, asset management, warehousing management, library management, production management, ticket management and other fields.
Features:
1).FDY-8190 is a handheld UHF RFID Reader datal colectionn terminal for retail industry.
2).Unique pistol grip design makes it comfortable and suitable to hand held.
3).High-sensitivity antenna and agglomeration identification technology module, it reaches 6~7m long distance reading and writing.
4).Built -in 6000mAh large- capacity battery and handle backup battery, it guarantees continuous working for over 12 hours.
5).4G/Wif/Blue-tooth/GPS, Dual sim card and Dual standby.
6).IP64 Protection and 1.5M Drop Resistance.
Specifications:
Mechanical Parameters | |
Materials | CNCaluminum + nylon(Bayer) |
Dimensions | Profile 160x82x129mm |
Grip 111*38*47mm | |
Weight | 640g( Include battery / Standard version) |
System Characteristics | |
Operating System | Android 6.0 |
CPU | Quad-core Cortex-A17/1.8GHz |
GPU | ARM Mali-T764/ High performance3D engine |
RAM | 2G LPDDR3 |
4GLPDDR3 (Optional) | |
ROM | 32GEMMC 5.0 |
64G EMMC 5.0 (Optional) | |
LCD | 5.0 Inches /1280°720/ IPS /180 view angle |
Touch Screen | 1.1mm thickness tempered glass / lO-dot touch / Can be operated with the glove |
Hot-swapping Battery | Pistol style hot-swapping battery system |
PSAM | PSAM02 / TI TCA5013 (Optional) |
Buttons | |
Power I Volume*2 | 3 ALPS buttons/ Operating force 2.2N/Operating life 600,000 cycles |
Function Keys | 3 ALPS buttons/ Operating force 2.2N/Operating life 600,000 cycles |
ScanTrigger | OMRON button/0perating force 127N /Operating life 10,000,000 cycles |
Power | 6,000mAh chargeable Ii-polymer battery |
Card Slots | Micro SIM card slot PSAM card slot-z |
USB Interface | Micro USB / Molex connector/Operating life 10,000 cycles |
Audio | Large speaker stereo system |
Vibrator | Button style/10mm diameter |
Charge Indicator | BicolorLED |
Wireless Communications | |
WIFI | IEEE 802.11 b/g/n |
Bluetooth | 61uetooth 4.0 |
3G | Huawei MU609/ Vehicle grade (Optional) |
4G | Huawei ME 909s /Vehicle grade (Optional |
Application Environment | |
Operating Temp. | -20ºC to 60ºC |
Storage Temp. | -40ºC to 70ºC |
Humidity | 5%RH to 95%RH(non-condensing) |
Protection Grade | IP64 |
Safety Drop Height | 2m /6.56ft. |
Data Collections | |
1D Bar Code (Optional | |
Engine | Symbol SE955 |
Support | UPC/EA Symbol SE955N/Code128 /Code39/ Code93/ Cadell/Interleaved 2 of 5/ Discrete 2 of 5/Chinese 2 of 5/ Codabar/ MSI/RSS. etc. |
2D Bar Code (Optional) | |
Engine | Symbol SE4750 |
Support | Data matrix/QR Code/PDF417/US Planet /UK Postal, etc. |
UHF RFID | |
Engine | Rodbell M-2600 module based on Impinj Indy R2000 chip |
Buzzer | 112°9.5mm 12300±300Hz |
Protocol | EPC Global UHF Class 1Gen2 /ISO 18000-6C/ ISO16000-66 |
Work Frequency | 840-960MHz |
Output Power | 0-33d6m |
Peak Inventory Speed | > 500tags/s |
UHFAntenna | 3dBi circularly polarized antenna |
Read Distance | 6-7m(Tested tag: Impinj E41b) |
Supported Regions | US, Canada, and other regions following us. FCC Europe and other regions following ETSI /EN 302 208/China /Japan/ Korea / Malaysia. |
Camera (Optional) | 13 megapixels/automatic focus/flashlight |
Global positioning system | GPS&GLONASS |
Accessories | |
Two Batteries Battery Bay Charger&USB Data Cable Hanging lace |
